STAR5012

Low-voltage LDO

Description

STAR5012 is a low power silicon proven block, which provides 1.8V output voltage. STAR5012 only requires 10uA for typical operation. The block has a wide input range of input supply voltage from 2 to 3.3V. The combination of low power consumption, input voltage range and absence of external components needed makes it ideal for low power portable systems.

Features

  • Output Voltage of 1.8V

  • Wide Input Supply Voltage 2V to 3.3V

  • Output Current up to 5mA

  • Operating temperature from -40ºC to 85ºC

  • Operating Current 10uA

  • Power-down Current < 1uA

  • Temperature Coefficient +/-0.2mV/C

  • 180nm CMOS process

  • Internal Bias Circuit

  • No External Components

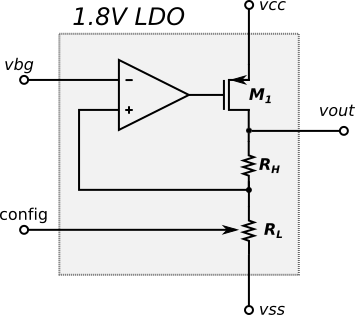

Block diagram of STAR5012

Block diagram of STAR5012



Applications

  • LED Drivers

  • Sensor Supply



IP deliverables

  • .gds layout database

  • .lib liberty timing models

  • .lef layout exchange format files

  • Extensive documentation

  • Customer support/integration package

  • Design usage training

  • Schematics available

  • Secured online portal
